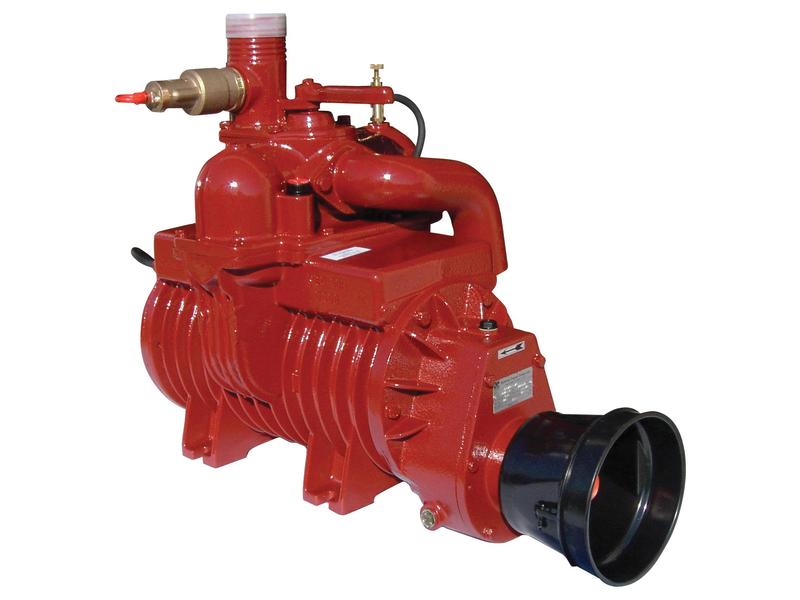

Vacuum pump - MEC5000M - PTO driven - 540 RPM Image 1

  • Vacuum pump - MEC5000M - PTO driven - 540 RPM 1
  • Vacuum pump - MEC5000M - PTO driven - 540 RPM 2
  • Vacuum pump - MEC5000M - PTO driven - 540 RPM 3
  • Vacuum pump - MEC5000M - PTO driven - 540 RPM 4
Vacuum pump - MEC5000M - PTO driven - 540 RPM - Image 3

Vacuum pump - MEC5000M - PTO driven - 540 RPM To fit as: 9000500001

Make: 64

S.101800

Weight: 130.00kg
Stock Check
Rotation:Anti-Clockwise
Lubrication:Manual lubrication
Capacity LPM: 6150
Oil Tank Capacity (ltrs.): 2.5L
Max. Working Pressure: 1.5 Bar
Vacuum Max.: 0.9 Bar
Not supplied with 1 1/2'' Pressure Relief Valve View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Gearbox
Make: 64
S.101827 - Gearbox
Front Flange
Make: 64
S.101828 - Front Flange
Flange Gasket
Make: 64
S.101829 - Flange Gasket
Oil Seal - 48 x 62 x 8mm
Make: 64
S.101843 - Oil Seal - 48 x 62 x 8mm
Oil Plug
Make: 64
S.101845 - Oil Plug
Oil Seal - 35 x 62 x 10mm
Make: 64
S.101851 - Oil Seal - 35 x 62 x 10mm
Gear Box Cover Gasket
Make: 64
S.101852 - Gear Box Cover Gasket
Oil Plug
Make: 64
S.101853 - Oil Plug
Lock Nut - M24 x 2.00
Make: 64
S.101854 - Lock Nut - M24 x 2.00
Exhaust Elbow
Make: 64
S.101858 - Exhaust Elbow
Manifold Gasket
Make: 64
S.101859 - Manifold Gasket
Oil Seal - 30 x 40 x 7mm
Make: 64
S.101863 - Oil Seal - 30 x 40 x 7mm
Rubber Ball, Ø70mm
Make: 64
S.101864 - Rubber Ball, Ø70mm
Manifold Cover Gasket
Make: 64
S.101865 - Manifold Cover Gasket
Directional Flow Handle
Make: 64
S.101870 - Directional Flow Handle
Manifold Cover
Make: 64
S.101873 - Manifold Cover
Reversing Gear
Make: 64
S.101875 - Reversing Gear
Gearbox Cover
Make: 64
S.101883 - Gearbox Cover
Shaft Guard
Make: 64
S.101884 - Shaft Guard
Iron Plug - Ø16 x 1mm
Make: 64
S.101885 - Iron Plug - Ø16 x 1mm
Oil Level Rod x 130mm
Make: 64
S.101887 - Oil Level Rod x 130mm
Seeger Ring Ø80 x 70 x 5mm
Make: 64
S.101889 - Seeger Ring Ø80 x 70 x 5mm
5ltr Battioni Oil
Make: 64
S.101971 - 5ltr Battioni Oil
Metric Parallel Key, Dimension: 6mm x 6mm x 25mm (DIN or Standard No. DIN 6885A)
Make: 65
S.11026 - Metric Parallel Key, Dimension: 6mm x 6mm x 25mm (DIN or Standard No. DIN 6885A)
Sparex Deep Groove Ball Bearing (6208)
Make: 65
S.18058 - Sparex Deep Groove Ball Bearing (6208)
Sparex Deep Groove Ball Bearing (6307)
Make: 65
S.18107 - Sparex Deep Groove Ball Bearing (6307)
Sparex Deep Groove Ball Bearing (6304ZZ)
Make: 65
S.18119 - Sparex Deep Groove Ball Bearing (6304ZZ)
Pressure relief valve 1-1/2''
Make: 69
S.59488 - Pressure relief valve 1-1/2''
Product Specifications

Specifications

Rotation:Anti-Clockwise
Lubrication:Manual lubrication
Capacity LPM: 6150
Oil Tank Capacity (ltrs.): 2.5L
Max. Working Pressure: 1.5 Bar
Vacuum Max.: 0.9 Bar
Not supplied with 1 1/2'' Pressure Relief Valve
Battioni
A (mm)
304
B (mm)
189
Barcode 128
S.101800
Barcode EAN13
5045161018001
Brand
Battioni
C (mm)
130
Capacity LPM
6150
D (mm)
60
Drive Type
PTO driven
E (mm)
623
F (mm)
15
G (mm)
597
H (mm)
637
Height (mm)
637
I (mm)
95
J (mm)
227
K (mm)
195
L (mm)
215
Length (mm)
623
Lubrication
Manual lubrication
M (mm)
410
Max. RPM
540
Maximum Working Pressure (bar)
400
Maximum Working Pressure
1.5 Bar
Model
MEC5000M
N (mm)
60
Notes
Not supplied with 1 1/2'' Pressure Relief Valve
Oil Tank Capacity (ltrs.)
2.5
Power Absorption Max. Pressure (kw)
21
Power Absorption Max. Vacuum (kw)
11
Primary OE Reference
9000500001
Product Family
Sparex
Related products
Flange GasketS.101829https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101829_pic1.jpgBattioniSuitable for Mec5000, Mec6500 & Mec8000 vacuum pumpsGearboxS.101827https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101827_pic1.jpgBattioniSuitable for Mec 5000M, Mec 6500M & Mec 8000M vacuum pumpsFront FlangeS.101828https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101828_pic1.jpgBattioniSuitable for Mec5000, Mec6500 & Mec8000 M, P, D & H type vacuum pumpsOil Seal - 48 x 62 x 8mmS.101843https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101843_pic1.jpgBattioniSuitable for Mec 5000, Mec6500 & Mec8000 M, H, D & P type vacuum pumps (Bag of 4)Oil PlugS.101845https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101845_pic1.jpgBattioniØ3/8'' Suitable for Mec5000, Mec6500, Mec8000, Mec9000, Mec11000 & Mec13500 M type vacuum pumpsScrew - M10 x 16mm (Bag of 2)S.101846https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101846_pic1.jpgBattioniSuitable for Mec5000, Mec6500, Mec8000, Mec9000, Mec11000 & Mec13500M Type vacuum pumpsWasher - Ø10 x 16mm (Bag of 5)S.101847https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101847_pic1.jpgBattioniSuitable for Mec5000, Mec6500 & Mec8000 M Type vacuum pumpsOil Seal - 35 x 62 x 10mmS.101851https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101851_pic1.jpgBattioniSuitable for Mec5000, Mec6500, Mec8000, Mec9000, Mec11000 & Mec13500 M type vacuum pumpGear Box Cover GasketS.101852https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101852_pic1.jpgBattioniSuitable for Mec5000, Mec6500 & Mec8000 M type vacuum pumpOil PlugS.101853https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101853_pic1.jpgBattioniSuitable for Mec5000, Mec6500, Mec8000, Mec9000, Mec11000 & Mec13500 M type vacuum pumpLock Nut - M24 x 2.00S.101854https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101854_pic1.jpgBattioniSuitable for Mec 5000 & Mec 9000 M type vacuum pumpExhaust ElbowS.101858https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101858_pic1.jpgBattioniSuitable for Mec 5000, Mec6500 & Mec8000 M, H, D & P type Vacuum PumpsManifold GasketS.101859https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101859_pic1.jpgBattioniSuitable for Mec 5000, Mec6500 & Mec8000 M, H, D & P type Vacuum PumpsOil Seal - 30 x 40 x 7mmS.101863https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101863_pic1.jpgBattioni30 x 40 x 7mm , Suitable for Mec 5000, Mec6500 & Mec8000 M, H, D & P type vacuum pumpsRubber Ball, Ø70mmS.101864https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101864_pic1.jpgBattioniSuitable for Mec 5000, Mec6500 & Mec8000 M, H, D & P type vacuum pumpsManifold Cover GasketS.101865https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101865_pic1.jpgBattioniSuitable for Mec 5000, Mec6500 & Mec8000 M, H, D & P type vacuum pumpsSpringS.101866https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101866_pic1.jpgBattioniSuitable for Mec 5000, Mec6500 & Mec8000 M, H, D & P type vacuum pumpsDirectional Flow HandleS.101870https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101870_pic1.jpgBattioniSuitable for Mec 5000, Mec6500 & Mec8000 M, H, D & P type vacuum pumpsManifold CoverS.101873https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101873_pic1.jpgBattioniØ80mm, Suitable for Mec 5000, Mec6500 & Mec8000 M, H, D & P type vacuum pumpsReversing GearS.101875https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101875_pic1.jpgBattioniSuitable for Mec 5000, Mec6500 & Mec8000 M, H, D & P type vacuum pumpsGearbox CoverS.101883https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101883_pic1.jpgBattioniSuitable for Mec5000, Mec6500 & Mec8000 M type vacuum pumpsShaft GuardS.101884https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101884_pic1.jpgBattioniSuitable for Mec5000, Mec6500, Mec8000, Mec9000, Mec11000 & Mec13500 M type vacuum pumpsIron Plug - Ø16 x 1mmS.101885https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101885_pic1.jpgBattioniSuitable for Mec5000, Mec6500, Mec8000, Mec9000, Mec11000 & Mec13500 P, D, H & M type vacuum pumpsOil Level Rod x 130mmS.101887https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101887_pic1.jpgBattioniSuitable for Mec5000, Mec6500 & Mec8000 P, D, H & M type vacuum pumpsScrew - M6 x 10mm (Bag of 5)S.101888https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101888_pic1.jpgBattioniSuitable for Mec5000, Mec6500 & Mec8000 M & D type vacuum pumpsSeeger Ring Ø80 x 70 x 5mmS.101889https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101889_pic1.jpgBattioniSuitable for Mec5000, Mec6500, Mec8000, Mec9000, Mec11000 & Mec13500 P, D, H & M type vacuum pumpsThreaded Dowl - M10 x 1mm (Bag of 2)S.101890https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101890_pic1.jpgBattioniSuitable for Mec5000, Mec6500 & Mec8000 M & D type vacuum pumpsScrew - M10 x 25mm (Bag of 5)S.101891https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101891_pic1.jpgBattioniSuitable for Mec5000, Mec6500, Mec8000, Mec9000, Mec11000 & Mec13500 M & D type vacuum pumpsScrew - M8 x 25mm (Bag of 5)S.101892https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101892_pic1.jpgBattioniSuitable for Mec5000, Mec6500, Mec8000, Mec9000, Mec11000 & Mec13500 M & D type vacuum pumps 8.8 grade5ltr Battioni OilS.101971https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/101971_pic1.jpgBattioniDesigned for vacuum pumpsMetric Parallel Key, Dimension: 6mm x 6mm x 25mm (DIN or Standard No. DIN 6885A)S.11026https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/11026_pic1.jpgSparex Sparex Deep Groove Ball Bearing (6208)S.18058https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/18058_pic1.jpgSparexID: 40mm
OD: 80mm
Width: 18mmSparex Deep Groove Ball Bearing (6307)S.18107https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/18107_pic1.jpgSparexID: 35mm
OD: 80mm
Width: 21mmSparex Deep Groove Ball Bearing (6304ZZ)S.18119https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/18119_pic1.jpgWidth (mm) | 15 || B (mm) | 15 || Alternative to | 18134 || d (mm) | 20 || Inner Ø (mm) | 20 || Barcode EAN13 | 5023495181196 || D (mm) | 52 || Outer Ø (mm) | 52 || Bearing Reference | 6304ZZ || Tariff Code | 8482200000 || Bearing type | Deep Groove || Metric or Imperial | Metric || Barcode 128 | S.18119 || Returnable Product | This item can be returned || Seal Type | ZZID: 20mm
OD: 52mm
Width: 15mmOil DropperS.59478https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/59478_pic1.jpgTemperature range | -15°C to +80°C || Nominal I.D. (ins) | 1/4 || Ø (ins) | 1/4 || Related products | 101800,101801,101802,101803,101804,101805,149222,149224,149225 || L (mm) | 29 || h (mm) | 47.5 || Pressure (bar) | 5 || Barcode EAN13 | 5023495594781 || d (mm) | 7 || Pressure (psi) | 70psi || Tariff Code | 8436990090 || H (mm) | 90 || Fits: | MEC I & MEC II M, P, D & H type Vacuum Pumps (MEC5000 - MEC13500) || Barcode 128 | S.59478 || Returnable Product | This item can be returnedTwin outlet, Suitable for MEC I & MEC II M, P, D & H type Vacuum Pumps (MEC5000 - MEC13500)Pressure relief valve 1-1/2''S.59488https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/59488_pic1.jpgSize (ins) | 1-1/2 || Ø (ins) | 1-1/2 || Related products | 101800,101801,101802,149222 || E (mm) | 195 || Height (mm) | 195 || F (mm) | 30 || B (mm) | 37 || A Ø (mm) | 40 || C (mm) | 44 || D (mm) | 49 || Barcode EAN13 | 5023495594880 || G (mm) | 60 || Tariff Code | 8436990090 || Fits: | MEC5000,MEC6500 & MEC8000 M, P, D & H || Barcode 128 | S.59488 || Returnable Product | This item can be returnedHeight: 195mmShaft GuardS.72369https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/72369_pic1.jpgBattioniSuitable for Mec5000, Mec6500, Mec8000, Mec9000, Mec11000 & Mec13500 M & D type Vacuum pumpsDepression Valve 1 1/2''S.79297https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/79297_pic1.jpgMetaltecnicaDepression ValveS.101829, S.101827, S.101828, S.101843, S.101845, S.101846, S.101847, S.101851, S.101852, S.101853, S.101854, S.101858, S.101859, S.101863, S.101864, S.101865, S.101866, S.101870, S.101873, S.101875, S.101883, S.101884, S.101885, S.101887, S.101888, S.101889, S.101890, S.101891, S.101892, S.101971, S.11026, S.18058, S.18107, S.18119, S.59478, S.59488, S.72369, S.79297
Rotation
Anti-Clockwise
Shaft
1 3/8 - 6 splines
Tariff Code
8414102530
Vacuum Max. (Hg)
0.9 Bar
Width (mm)
410
Suitable For Make/Model

Suitable For Make/Model

Battioni Pagani Pomp
MEC5000M
Battioni Pagani PompBattioni Pagani Pomp MEC5000MMEC5000M
OEM Part Numbers

Oem Part Numbers

Battioni Pagani Pomp
9000500001
Catalogue Pages

Catalogue Pages

Catalogue
Page No.
S.700047 All Seasons 2014
25
