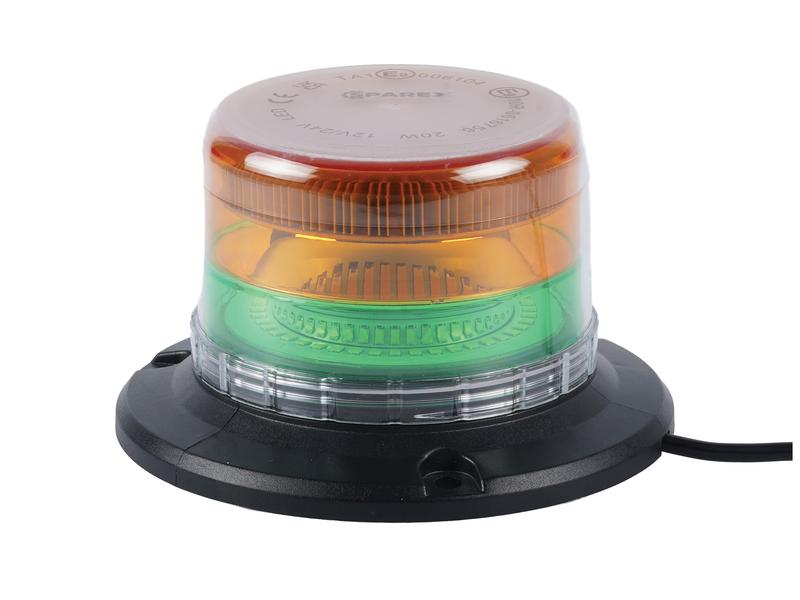

LED Beacon, Amber / Green, Magnetic with Suction Cups 12-24V Image 1

  • LED Beacon, Amber / Green, Magnetic with Suction Cups 12-24V 1
  • LED Beacon, Amber / Green, Magnetic with Suction Cups 12-24V 2
  • LED Beacon, Amber / Green, Magnetic with Suction Cups 12-24V 3
LED Beacon, Amber / Green, Magnetic with Suction Cups 12-24V - Image 3

LED Beacon, Amber / Green, Magnetic with Suction Cups 12-24V

Make: 65

S.173557

Weight: 1.20kg
Stock Check
3 functions: Rotating, Double Flashes, Single Flash
Interference Reg 10
Overall height65mm
Ø108mm
Profile: Low
IP Rating: IP65
ECE Rating Reg 10
 View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Seat Belt Kit
Make: 167
S.119892 - Seat Belt Kit
Seat Belt Kit
Make: 167
S.150295 - Seat Belt Kit
Seat Belt Kit
Make: 167
S.156683 - Seat Belt Kit
Product Specifications

Specifications

3 functions: Rotating, Double Flashes, Single Flash
Interference Reg 10
Overall height65mm
Ø108mm
Profile: Low
IP Rating: IP65
ECE Rating Reg 10
Sparex
Barcode 128
S.173557
Barcode EAN13
5045161735571
Brand
Sparex
Cable length (mm)
3800
CE Approved
Yes
Connection Type
12V Port
ECE Rating
Reg 10
Fixing:
Magnetic with Suction Cups
Function
3 functions: Rotating, Double Flashes, Single Flash
Housing Material
Polycarbonate
Interference EMC EMI CISPR 25
Reg 10
IP Rating
IP65
Lens Colour
Amber / Green
Lens Material
Polycarbonate
Light source
LED
Number of LEDs:
90 LEDs
Overall height (ins)
2-9/16
Overall height (mm)
65
Overall width (ins)
5-29/32
Overall width (mm)
150
Power Consumption @ 12V:
6Amps
Power Consumption @ 24V:
3.0Amps
Profile
Low
Related products
Seat Belt KitS.119892https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/119892_pic1.jpgSecuronFree Wire Buckle Housing: 270mm ± 15mm,
Switch Type: Driver Presence Detection (DPD), If the seatbelt is connected there is no continuity. When it is not locked there is continuity.
Voltage Resistive Load: 12VDC 2A, 24VDC 1A, 42VDC 0.5A,
Wire Ends: 6mm,
Wire Colour: Black, Blue, Red.Seat Belt KitS.150295https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/150295_pic1.jpgSecuronFree Wire Buckle Housing: 270mm ± 15mm,
Switch Type: Driver Presence Detection (DPD), If the seatbelt is connected there is no continuity. When it is not locked there is continuity.
Voltage Resistive Load: 12VDC 2A, 24VDC 1A, 42VDC 0.5A,
Wire Ends: 6mm,
Wire Colour: Black, Blue, Red.Seat Belt KitS.156683https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/156683_pic1.jpgSecuronFree Wire Buckle Housing: 120mm ± 15mm
Switch Type: Driver Presence Detection (DPD)
Voltage Resistive Load: 12VDC-2A, 24VDC-1A
Wire Ends: 2.3mm
Wire Colour: Black, Blue, RedS.119892, S.150295, S.156683
RoHS Approved
Yes
Shape
Round
Tariff Code
8539100090
Volts
12-24V
With Noise Suppression
Yes
Working Temperature °C
-30°C to 50°C
Ø (mm)
108
