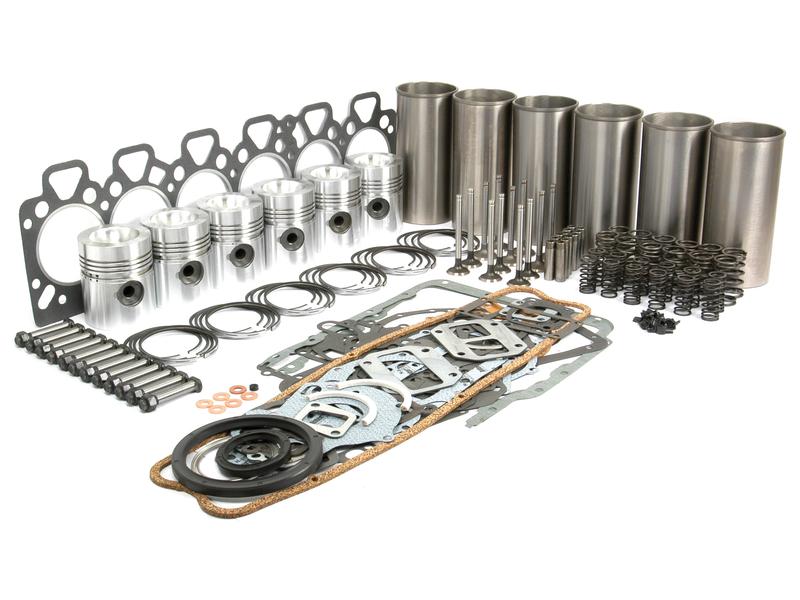

Engine Overhaul Kit with Valve Train (Finished) Image 1

  • Engine Overhaul Kit with Valve Train (Finished) 1
Engine Overhaul Kit with Valve Train (Finished) - Image 3

Engine Overhaul Kit with Valve Train (Finished)

S.42740

Weight: 28.00kg
Stock Check
Engine Overhaul Kit with Valve Train
Engine Manufacturer: Perkins
Engine Model: A6.354.4
Cylinder View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Crankshaft Seal
Make: 65
S.40351 - Crankshaft Seal
Imperial Rotary Shaft Seal, 5.17'' x 6.25'' x 0.51''
S.40356 - Imperial Rotary Shaft Seal, 5.17'' x 6.25'' x 0.51''
Small End Bush - ID: 34.6mm
Make: 65
S.40361 - Small End Bush - ID: 34.6mm
Conrod Bolt
Make: 65
S.40363 - Conrod Bolt
Piston Liner (Finished)
S.40434 - Piston Liner (Finished)
Inlet Valve
Make: 65
S.40478 - Inlet Valve
Inlet Valve Guide
Make: 65
S.40496 - Inlet Valve Guide
Valve Spring - Inner
Make: 65
S.40501 - Valve Spring - Inner
Valve Spring - Outer
Make: 65
S.40506 - Valve Spring - Outer
Top Gasket Set - 6 Cyl. (A6.354, A6.354.1, A6.354.4)
Make: 65
S.40601 - Top Gasket Set - 6 Cyl. (A6.354, A6.354.1, A6.354.4)
Bottom Gasket Set - 6 Cyl. (A6.354, A6.354.1, A6.354.4, AT6.354, AT6.354.1, AT6.354.4, T6.354, T6.354.1 )
Make: 65
S.40616 - Bottom Gasket Set - 6 Cyl. (A6.354, A6.354.1, A6.354.4, AT6.354, AT6.354.1, AT6.354.4, T6.354, T6.354.1 )
Valve Collet
S.41413 - Valve Collet
Exhaust Valve Guide
Make: 65
S.41539 - Exhaust Valve Guide
Exhaust Valve Standard
Make: 65
S.41745 - Exhaust Valve Standard
Piston Ring
S.42207 - Piston Ring
Fuel Filter - Element
Make: 92
S.1296 - Fuel Filter - Element
Push Rod
Make: 65
S.30019 - Push Rod
Bypass Hose, Inner Ø of Hose Smaller End: 28mm, Inner Ø of Hose Bigger End: 28mm
Make: 65
S.40082 - Bypass Hose, Inner Ø of Hose Smaller End: 28mm, Inner Ø of Hose Bigger End: 28mm
Thermostat
Make: 65
S.40087 - Thermostat
Conrod Bearing Standard Set
Make: 65
S.40327 - Conrod Bearing Standard Set
Conrod Bearing +0.010'' (0.25mm) Set
S.40328 - Conrod Bearing +0.010'' (0.25mm) Set
Conrod Bearing +0.030'' (0.75mm) Set
S.40330 - Conrod Bearing +0.030'' (0.75mm) Set
Thrust Washers (Set) - Standard
Make: 65
S.40345 - Thrust Washers (Set) - Standard
Thrust Washers (Set) - + 0.0075''
Make: 65
S.40346 - Thrust Washers (Set) - + 0.0075''
Flywheel Lock Tab
Make: 65
S.40347 - Flywheel Lock Tab
Conrod
S.40359 - Conrod
Fuel Lift Pump
Make: 65
S.40565 - Fuel Lift Pump
Ring Gear
Make: 65
S.41449 - Ring Gear
Bypass Hose, Inner Ø of Hose Smaller End: 38mm, Inner Ø of Hose Bigger End: 38mm
Make: 65
S.41823 - Bypass Hose, Inner Ø of Hose Smaller End: 38mm, Inner Ø of Hose Bigger End: 38mm
Top Hose, Inner Ø of Hose Smaller End: 49mm, Inner Ø of Hose Bigger End: 49mm
S.41830 - Top Hose, Inner Ø of Hose Smaller End: 49mm, Inner Ø of Hose Bigger End: 49mm
Bottom Hose, Inner Ø of Hose Smaller End: 49.2mm, Inner Ø of Hose Bigger End: 56.7mm
Make: 65
S.41836 - Bottom Hose, Inner Ø of Hose Smaller End: 49.2mm, Inner Ø of Hose Bigger End: 56.7mm
Camshaft Follower
S.41918 - Camshaft Follower
Rocker Arm (RH)
S.41919 - Rocker Arm (RH)
Rocker Arm LH
Make: 65
S.41920 - Rocker Arm LH
Engine Oil Pump
S.41935 - Engine Oil Pump
Engine Oil Pump
S.41936 - Engine Oil Pump
Water Pump Assembly (Without Pulley)
Make: 65
S.42126 - Water Pump Assembly (Without Pulley)
Piston (Standard)
S.42197 - Piston (Standard)
Fuel Injector Nozzle
S.43190 - Fuel Injector Nozzle
Fuel Injection Pump Seal Kit
S.57135 - Fuel Injection Pump Seal Kit
Main Bearing Standard (Set)
S.60335 - Main Bearing Standard (Set)
Main Bearing +0.020'' (0.50mm) (Set)
S.60337 - Main Bearing +0.020'' (0.50mm) (Set)
Main Bearing +0.030'' (0.75mm) (Set)
S.60338 - Main Bearing +0.030'' (0.75mm) (Set)
Product Specifications

Specifications

Engine Overhaul Kit with Valve Train
Engine Manufacturer: Perkins
Engine Model: A6.354.4
Cylinder
N/A
Barcode 128
S.42740
Barcode EAN13
5023495427409
Contains
6 x S.42197 Piston, 6 x S.42207 Ring Set, 6 x S.40434 Liner, 6 x S.40361 Conrod Bush, 12 x S.40363 C/R Bolt & Nut, 1 x S.40601 Top Gasket Set, 1 x S.40616 Lower Gasket Set, 1 x S.40351 F/C Oil Seal, 1 x S.40356 R/C Oil Seal, 6 x S.40478 Inlet Valve, 6 x S.41745 Exhaust Valve, 6 x S.40496 In. Valve Guide, 6 x S.41539 Ex. Valve Guide, 12 x S.40501 Inner Valve Spring, 12 x S.40506 Outer Valve Spring, 24 x S.41413 Collet
Engine Manufacturer
Perkins
Engine Model
A6.354.4
Liner Type
Finished
Piston Type
3 Rings - ALFIN Groove
Related products
Crankshaft SealS.40351https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40351_pic1.jpgN/AEngine Manufacturer
Engine ModelImperial Rotary Shaft Seal, 5.17'' x 6.25'' x 0.51''S.40356https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40356_pic1.jpgN/ASeal - Double Lip Type ,(Black Viton) Alternative to S.41326Small End Bush - ID: 34.6mmS.40361https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40361_pic1.jpgN/AEngine ModelConrod BoltS.40363https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40363_pic1.jpgN/A Piston Liner (Finished)S.40434https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40434_pic1.jpgN/ALiner - Finished, Flanged with Flame RingInlet ValveS.40478https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40478_pic1.jpgSparex Inlet Valve GuideS.40496https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40496_pic1.jpgSparex Valve Spring - InnerS.40501https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40501_pic1.jpgSparex Valve Spring - OuterS.40506https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40506_pic1.jpgSparex Top Gasket Set - 6 Cyl. (A6.354, A6.354.1, A6.354.4)S.40601https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40601_pic1.jpgSparex Bottom Gasket Set - 6 Cyl. (A6.354, A6.354.1, A6.354.4, AT6.354, AT6.354.1, AT6.354.4, T6.354, T6.354.1 )S.40616https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40616_pic1.jpgSparexWithout Seals (Without Seals)Valve ColletS.41413https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/41413_pic1.jpgN/AValve - ColletExhaust Valve GuideS.41539https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/41539_pic1.jpgSparex Exhaust Valve StandardS.41745https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/41745_pic1.jpgN/AValve - ExhaustPiston (Standard)S.42197https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/42197_pic1.jpgN/APiston Length: 120.59mm
Compression Height: 69.77mm
Bore Ø: 98.48mm
Chamber Depth: 23.87mm
Chamber Ø: 54.15mm
Pin Ø: 34.93mm
No. of Rings: 3Piston RingS.42207https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/42207_pic1.jpgN/ARing SetS.40351, S.40356, S.40361, S.40363, S.40434, S.40478, S.40496, S.40501, S.40506, S.40601, S.40616, S.41413, S.41539, S.41745, S.42197, S.42207
Supplied with Valve Train Kit
Yes
Tariff Code
8409990090
Suitable For Make/Model

Suitable For Make/Model

This product is not associated with any particular make or model
OEM Part Numbers

Oem Part Numbers

Volvo
PH31358394
Yanmar
19431232660, 194312-32660
White Oliver
159213A, 159616A, 163276A, 165279A, 30-2772277, 4222496M91, 733767M1, 735820M1, 744948M1, 745738M91, 159369A, 30-3158632, 31-2752777, 31-2770027, 31-2771877, 735525M1, 748309M1, 748420M1, 159188A, 159189A, 163287A, 30-3033910, 30-3158411, 30-3158608, 30-3422143, 31-2770677, 31-2771887, 31-2771907, 735521M1, 747199M91, 1447690M1, 1447691M1, 30-3159663, 3637029M1, 739027M1, 747198M91
Allis Chalmers
70257365, 734644M1, 1447690M1, 4223073M1, 70251121, 739027M1, 4226213M1, 70251228, 71015543, 733767M1, 1447691M1, 70251001, 70251118, 70251119
Case IH
218271A1, 311752A1, 3118134R1, 3235723A1, 292994A1, 3118128R91, 736814M1, 795730R1, 795775R1, 3118133R1, 505110, 218299A1, 218375A1, 505852, 87575318
Ford New Holland
505984, 505524, 218375A1, 505043, 505071, 505110, 87575318
JCB
2101435, 2101529, 2101705, 2100019, 2101711, 2101883, 2192015, 2100206, 2100212, 2101710, 2101884, 2291072, 02/101436
Massey Ferguson
2415391, 2418F436, 2418F475, 31358394, 31358441, 3142A051, 31431315, 32762144, 3637056M1, 3637766M91, 3640676M1, 4222557M91, 4223073V1, 4223557M91, 4224049M91, 4224049V91, 1447690M1, 1447691M1, 1447691M91, 1750002m1, 31134123, 31358341, 31431103, 32762145, 3343F002, 3343F041, 3343J001, 3343J002, 3638771M91, 3638885M91, 3639218M1, 3641230M91, 376568X1, 4223074V1, 4224532M1, 68219, 70730050, 733822M1, 735521M1, 735820V1, 736297M1, 736507M3, 739027M1, 742396M91, 747172M91, 747195M1, 747198M1, 747541V91, 762026M1, U5LB0020, U5LP0014, 1446853M1, 1447049M1, 1447049M91, 1447690M91, 33221328, 33261732, 3640785M1, 4222485V1, 4222929M91, 4223073M1, 4223557V91, 733767M1, 733823M1, 735521V1, 736291M1, 739027V1, 744948Z1, 745738M91, 747541M91, 748266Z91, 748309M1, 780273, U5LB0022, U5LP0021, U5LT0018, 68246, 734644M1, 735525M1, 736296M1, 738051M91, 743506M1, 747198M91, 747199M1, 747541Z91, 747723M1, 748266M91, 748267M91, 748420M1, U5LB0043, U5LT0002, 1076898M1, 1476232X1, 1750002V1, 2415390, 31431641, 32762116, 33261751, 3637029M1, 3637030M1, 3641313M91, 41158017, 4222485M1, 4222496M91, 4223074M1, 4224120V91, 68218, 735525V1, 735820M1, 744948M1, 744948V1, 745738Z91, 747195M91, 747197M1, 747197M91, 747199M91, 747724M1, 748266V91, 780272, U5LB0023
Renault
7701031630, 7701030494
Landini
131358394, 133221328, 133261732, 133261752, 141158017, 1447690M1, 1447691M1, 218375A1, 31358341, 31431961, 3343F041, 3343J001, 3343J002, 3638771M91, 68218, 68225, 733767M1, 739027M1, U5LB0022, U5LB0023, U5LB0055, U5LP0021, U5LT0018, 131134123, 131431315, 132762145, 194490, 218271A1, 2415390, 31358441, 3142A051, 31431103, 31431315, 32762144, 33261731, 33261752, 3343F031, 3637030M1, 3637056M1, 131358441, 131744131, 132762144, 2415391, 2418F436, 2418F475, 31431641, 32762116, 33261751, 3343F001, 3637029M1, 3641313M91, 4223073M1, 68246, 715723A1, 735525M1, 747541M91, 748309M1, 86871, 94490, U5LB0050, U5LB0056, U5LB0150, U5LB0156, U5LT0191, U5LT1190, 3640676M1, 41158017, 4223074M1, 68393, 69013, 735820M1, 744948M1, 748266M91, 748420M1, U5LB0043, U5LB0049, U5LB0155, U5LB1225, 12415391, 131431641, 2418F437, 31358394, 33261732, 3343F002, 3343J021, 3638769M91, 3641230M91, 68219, 745738M91, 92421, U5LB0020, U5LB0024, U5LP0014, U5LT0002
Perkins
2418F701, 31134123, 31431103, 31431315, 31745121, 32762144, 33261731, 3343J001, 3343J002, 3343J021, 376568X1, 68219, 68393, 69028, 92421, U5LB0022, U5LB0023, U5LB0043, U5LB0055, U5LB0155, U5LP0014, 31431961, 33261732, 33261751, 68232, 68233, 2415390, 2418F475, 31358341, 31358441, 31431641, 32762145, 33221328, 33261752, 3343F031, 3343F041, 41118017, 41158017, 68218, 68225, 68246, 780272, 86871, 94494, U5LB0150, U5LB1225, U5LT0018, 2101436, 2415361, 2415391, 2418F436, 31358394, 3142A051, 32762116, 3343F001, 3343F002, 68231, 69013, U5LB0024, U5LB0049, U5LT0002, U5LT0191, 780273, 94490, U5LB0020, U5LB0050, U5LP0021
Vandervell
B.5283
not specified
31358339, 3637766M91, 745738M91, 748309M1, U5PR0010, 1476232X1, 744948M1, 3638885M91, 736507M3
