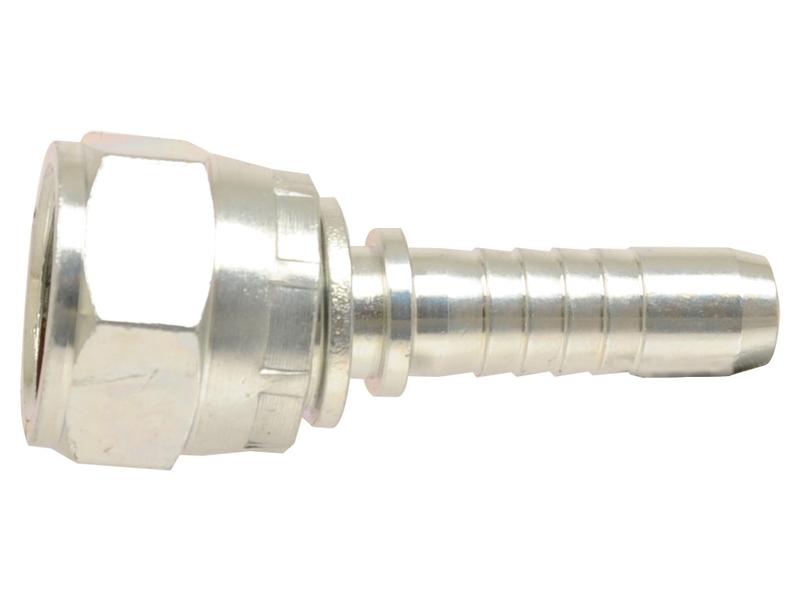

Dicsa JIC 37° Hose Insert 3/8\'\' x 9/16\'\' Female Thread Straight Swivel Image 1

  • Dicsa JIC 37° Hose Insert 3/8\'\' x 9/16\'\' Female Thread Straight Swivel 1
  • Dicsa JIC 37° Hose Insert 3/8\'\' x 9/16\'\' Female Thread Straight Swivel 2
  • Dicsa JIC 37° Hose Insert 3/8\'\' x 9/16\'\' Female Thread Straight Swivel 3
  • Dicsa JIC 37° Hose Insert 3/8\'\' x 9/16\'\' Female Thread Straight Swivel
Dicsa JIC 37° Hose Insert 3/8\'\' x 9/16\'\' Female Thread Straight Swivel - Image 3

Dicsa JIC 37° Hose Insert 3/8'' x 9/16'' Female Thread Straight Swivel

Make: 83

S.53104

Weight: 0.04kg
Stock Check
View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Dicsa 2SN/2SC 2 Wire Ferrule 3/8''
Make: 83
S.112566 - Dicsa 2SN/2SC 2 Wire Ferrule 3/8''
Dicsa JIC 37° Hose Insert 3/8'' x 9/16'' Male Thread Straight
Make: 83
S.53118 - Dicsa JIC 37° Hose Insert 3/8'' x 9/16'' Male Thread Straight
Product Specifications

Specifications

Dicsa
Barcode 128
S.53104
Barcode EAN13
5023495531045
Brand
Dicsa
Cone angle
37°
C Ø (mm)
7
DN Ø ins
3/8
DN Ø mm
9.5
Fitting
2 Piece Fitting
Hex1 (mm)
19
Hose inner Ø (ins)
3/8
Hose inner Ø (mm)
9.5
L (mm)
46.5
L1 (mm)
29.5
Nominal I.D.
DN10
Position
Straight Swivel
Reference
241420906
Related products
Dicsa 2SN/2SC 2 Wire Ferrule 3/8''S.112566https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/112566_pic1.jpgDicsa Dicsa JIC 37° Hose Insert 3/8'' x 9/16'' Male Thread StraightS.53118https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/53118_pic1.jpgDicsa Dicsa JIC 37° Hose Insert 3/8'' x 9/16'' Female 90° Swept SwivelS.53132https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/53132_pic1.jpgDicsaL mm 68L1 mm 29.5L2 mm 38Hex1 mm 19C Ø mm 7Dicsa JIC 37° Hose Insert 3/8'' x 9/16'' Female 135° Swept SwivelS.56104https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/56104_pic1.jpgDicsaL mm 71L1 mm 29.5L2 mm 18Hex1 mm 19C Ø mm 7Dicsa Ferrule 3/8'' 4SP 4 WireS.116652https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/116652_pic1.jpgDicsaL mm 31L1 mm 27C Ø mm 14.5D Ø mm 26E Ø mm 18.5S.112566, S.53118, S.53132, S.56104, S.116652
Tariff Code
7307199000
Thread Male or Female
Female Thread
Thread size (R1)
9/16
Thread type
JIC
Comparison Table
Suitable For Make/Model

Suitable For Make/Model

This product is not associated with any particular make or model
OEM Part Numbers

Oem Part Numbers

This product is not associated with any particular OEM part number
Catalogue Pages

Catalogue Pages

Catalogue
Page No.
S.74000 Accessories 2014
349
