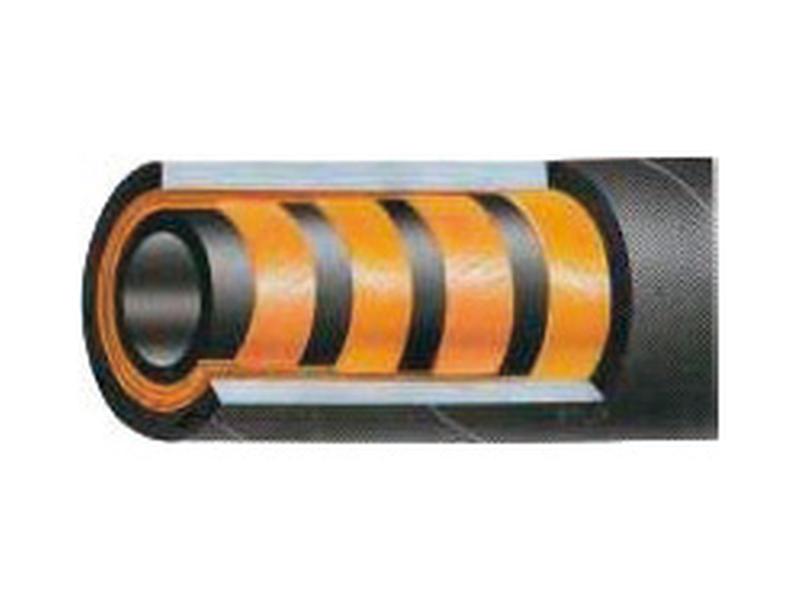

Dicsa Hydraulic Hose - 1/2\'\' 4SP 4 Wire Standard (Roll) Image 1

  • Dicsa Hydraulic Hose - 1/2\'\' 4SP 4 Wire Standard (Roll) 1
  • Dicsa Hydraulic Hose - 1/2\'\' 4SP 4 Wire Standard (Roll)
Dicsa Hydraulic Hose - 1/2\'\' 4SP 4 Wire Standard (Roll) - Image 3

Dicsa Hydraulic Hose - 1/2'' 4SP 4 Wire Standard (Roll)

Make: 83

S.115154

Weight: 0.88kg
Stock Check
4SP 4 Wire Standard DIN EN856-4SP-SAE100-R9R-R10
External Skive View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Product Specifications

Specifications

4SP 4 Wire Standard DIN EN856-4SP-SAE100-R9R-R10
External Skive
Dicsa Trale
Barcode 128
S.115154
Barcode EAN13
5045161151548
Brand
Dicsa
Burst pressure (bar)
1660
Burst pressure (psi)
24070
Construction
4 Wire
Ferrule Part Number
S.116653
Hose inner Ø (ins)
1/2
Hose inner Ø (mm)
12.7
Hose outer Ø (mm)
23.8
House outer Ø (ins)
15/16
Maximum Working Pressure (bar)
350
Maximum Working Pressure (psi)
6017.5
Minimum Bend Radius (mm)
230
Nominal I.D.
DN12
Pack Type
Roll
Reference
MS42900810
Related products
Dicsa Ferrule 1/2'' 4SP 4 WireS.116653https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/116653_pic1.jpgDicsaL mm 32L1 mm 27.5C Ø mm 18.6D Ø mm 30E Ø mm 22.2S.116653
Roll length (M)
10M
Specification
4SP 4 Wire Standard DIN EN856-4SP-SAE100-R9R-R10 External Skive
Tariff Code
4009210000
Type
4SP 4 Wire Standard
Suitable For Make/Model

Suitable For Make/Model

This product is not associated with any particular make or model
OEM Part Numbers

Oem Part Numbers

This product is not associated with any particular OEM part number
